    30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3

    Ask Lasest Price
    Brand Name : SINOTRUK
    Model Number : ZZ3259N384PB3
    Price : USD 29,800 per Unit
    Payment Terms : T/T
    Supply Ability : 50 units per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

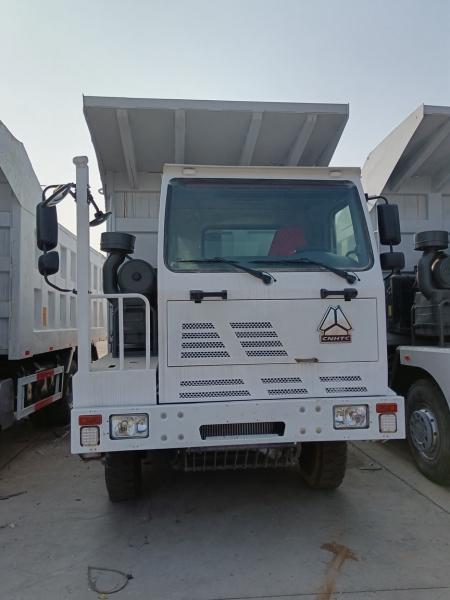

    30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3

    Used & Refurbished 40Ton 30 Cubic Sinotruk HOWO Mining Dump Truck 6*4 Euro 3


    Key words:Sinotruk, Mining Truck, Dump Truck, 30 Cubic Meter, Used Truck


    The self-unloading method of the car is rear unloading. Optional cargo compartment appearance structure. The engine preheating device on the table on the right side of the cab and in front of the air filter can be omitted; the cooling water tank of the braking system on the right side of the frame and behind the battery box can be omitted. There is a one-to-one correspondence between the vehicle length and the rear overhang and departure angle parameters. When the length of the vehicle is 8560mm, the length of the cargo compartment is 5600mm and 5800mm; when the length of the vehicle is 8630mm, the length of the cargo compartment is 6000mm. The material used for the side guards is Q235A, and the connection method is bolted;

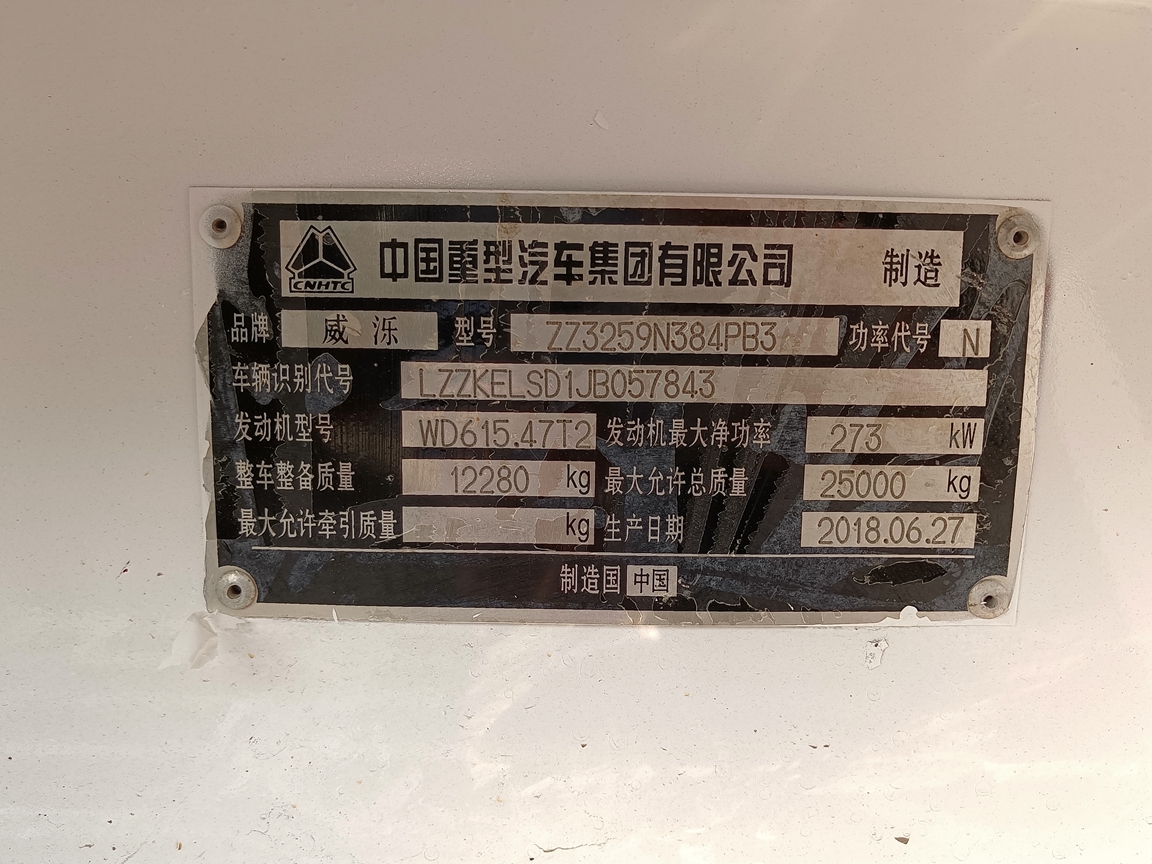

    Chassis modelZZ3259N384PB3
    CabHW7D cab without sleeper, two seats, adjustable driver's seat, with heating and ventilation system, outer sun visor, seat belt, adjustable steering wheel, air horn, air conditioner, lateral stabilizer, four-point support for full floating suspension+ Shock absorption
    engine

    Manufacturer: Sinotruk

    Four-stroke direct injection diesel engine

    Engine model: WD615.47T2, 371 HP; D12.42T2,420;

    Emission standard: Euro 2

    In-line six-cylinder water-cooled turbocharged inter-cooled

    Displacement: 9.726 L

    GearboxHW21712, 12F & 2R, with PTO
    steering systemZF Power Steering Model ZF8118, power assisted hydraulic steering
    Front bridge

    HF12,1x12000 KGS

    Double-section beam steering

    Rear axle

    AC26, 2x26000 KGS

    Central single-stage reduction axle housing, wheel hub restoration, differential lock between wheels and axles.

    Speed ratio: 10.47, 8.51

    Chassis

    Front suspension: 1500mm, semi-elliptical leaf spring and shock absorber cavitation

    Rear suspension: 1000mm, overall balance shaft balance suspension, single-sided oblique installation of 4 bolts

    Braking System

    Brake: dual-circuit pneumatic brake

    Parking brake (emergency brake): spring energy, compressed air works on the front axle and rear wheels.

    Auxiliary brake: engine exhaust brake

    Power Systems

    Working voltage: 24 volts, negative ground

    Starter: 24 volts, 5.4 kilowatts

    Generator: three-phase, 28 V, 1500 W

    Battery: 2×12V, 165AH

    Cigarette lighter, horn, headlight, fog light, brake light, indicator light and reversing light

    tire14.00-25, with a spare tire
    tank500L
    Cargo boxLength: 6M; Width: 2.7M; H Height: 1.9M. 30 cubic meter
    Vehicle size9045*3200*3940 mm
