Used 2020 JAC Gallop K7 480HP 6*4 Tractor Head Truck Euro 5 MAN ZF
Tech
Used Truck, Tractor Head, JAC Truck, K7 Truck, MAN, ZF
- The appearance is high and the appearance is eye-catching
What adds color to the appearance of the whole car is the front
face of the car. It can be said that the front face of this car has
tough lines and distinct layers. The whole shape is eye-catching,
and the front face is full of energy!
- Humanized design JAC is really attentive this time
According to reports, the K7 is equipped with a lane departure
system. Through this camera, it can identify the white line of the
highway, so as to judge whether the vehicle deviates from the lane,
and judge the distance from the vehicle in front. When the vehicle
deviates from the lane or the distance between the vehicles is too
close, the system can generate an audible alarm, which can prevent
some traffic accidents caused by the driver dozing off.
The opening area of the front panel is very large, and the
advantage of this design is to facilitate the daily maintenance and
repair of the vehicle. It is very convenient to open the panel with
a pneumatic tappet.
The front part of the cab adopts airbag shock absorption and has a
height adjustment valve, which can adjust the height of the airbag
in real time according to the bumps of the road surface to achieve
the best effect of shock absorption. The rear of the cab is also an
airbag shock absorber, and there is an extra protective shell
outside the airbag. Above the air bag we see a pipe, this pipe is
the exhaust pipe of the parking heater. Parking heaters are
undoubtedly a great boon for drivers in the north, and driving in
winter can avoid the torture of low temperatures.
- Strong chassis, MAN 13-liter engine + ZF gearbox
K7 uses Sinotruk MC13 engine, well, you read that right, it is
indeed the 13-liter engine on Shandeka. This engine has a maximum
of 540 horsepower and a torque of 2500N.m. In the face of the
current working condition of 49 tons, 540 horsepower can definitely
meet the needs of most people.

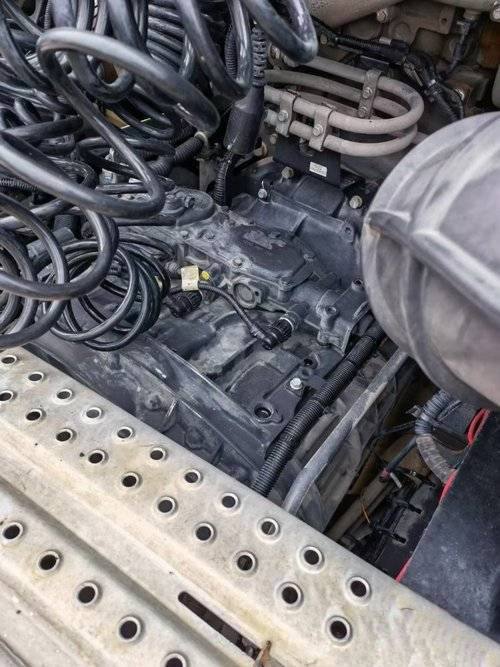

The gearbox uses ZF's 16S25310RO gearbox, with 16 gears, the
highest gear is overdrive, and the gearbox has a synchronizer,
which can realize one-foot clutch shifting. On the auxiliary box of
the gearbox, we saw the hydraulic retarder. The vehicle has a
retarder, which can greatly increase the driving safety when
driving on the mountain road. The use of the retarder can
significantly reduce the number of braking times and reduce the
wear of the braking system. Reduce vehicle maintenance costs.
| Basic Information |
| Announcement model: | HFC4252P1N8E33MS | Drive form: | 6X4 |
| Wheelbase: | 3800+1350mm | engine: | Sinotruk MT13.48-60 |
| Gearbox: | ZF ZF16S2231T0 | Rear axle ratio: | 3.364 |
| Body length: | 7.44 meters | Body width: | 2.55 meters |
| Body height: | 3.98 meters | Front track: | 2080mm |
| Rear Track: | 1860/1860mm | Vehicle weight: | 9.8 tons |
| Total mass: | 25 tons | Total Traction Mass: | 39 tons |
| Maximum speed: | 89km/h | Minimum turning diameter: | 18 meters |
| Market segments: | Logistics distribution, coal transportation, bulk material
transportation | Origin: | Hefei, Anhui |
| Tonnage class: | Heavy Truck | Remark: | Optional speed ratio 3.7, optional 1000L single gas cylinder,
1000+1000L double gas cylinder, 1350+1350L double gas cylinder,
parking air conditioner, electric air conditioner, 1000W inverter,
ventilated and heated massage seat, equipped with car networking
system, GPS+Beidou dual-mode truck dedicated navigation, MP5
entertainment system, ESS driving assistance, blind spot monitoring
system, lane departure warning system, ESC+ASR braking system, LED
headlights |
| Engine parameters |
| engine model: | Sinotruk MT13.48-60 | Engine Brand: | Sinotruk |
| Number of cylinders: | 6 | Fuel type: | Liquefied Natural Gas (LNG) |
| Cylinder arrangement: | In-line | Displacement: | 12.419L |
| Emission Standards: | country six | Maximum horsepower: | 480 hp |
| Maximum output power: | 353kW | Max torque: | 2200N m |
| Maximum torque speed: | 1000-1400rpm | Rated speed: | 1900rpm |
| Cab parameters |
| Cab Suspension: | Four-point airbag suspension | Number of passengers allowed: | 2 people |
| Seat row: | half row | | |
| Transmission parameters |
| Gearbox Model: | ZF ZF16S2231T0 | Gearbox brand: | ZF |
| Shift method: | manual | Forward gear: | 16 gears |
| Number of reverse gears: | 2 | | |
| tank |
| Fuel tank capacity: | 1350L | | |
| Chassis parameters |
| Front axle description: | I-shaped section | Description of rear axle: | Type 445 Reinforced Drive Axle |
| Front axle allowable load: | 7000kg | Rear axle allowable load: | 18000 (two-axis group) kg |
| Speed ratio: | 3.364 | Number of spring pieces: | 2/4,2/3 |

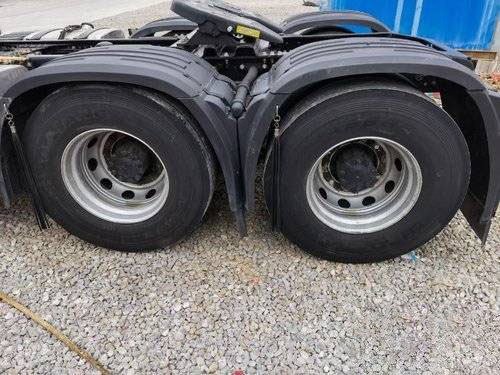

| tire |
| Number of tires: | 10 | Tire specifications: | 12R22.5 18PR |
| control configuration |
| ABS Anti-lock Braking: | ● | | |
| Internal configuration |
| Steering wheel material: | cortex | Multifunction steering wheel: | ● |
| Car refrigerator: | ● | Power windows: | ● |
| Rearview mirror electric heating: | ● | | |
| Multimedia configuration |
| Bluetooth/Car Phone: | ● | | |
| brake |
| Front Wheel Brakes: | drum brake | | |
| Smart configuration |
| Cruise control: | ● | 胎压监测系统: | ● |
