Gas Electric Hybrid 16L Unmanned Camera Drone Agricultural UAV Sprayer 5L/Min

Water Cooling Gas-electric hybrid power 16L agricultural UAV pesticide drone agriculture sprayer

Agricultural UAV, Water Cooling UAV, Agricultural Drone, Pesticide Drone, Spraying Drone

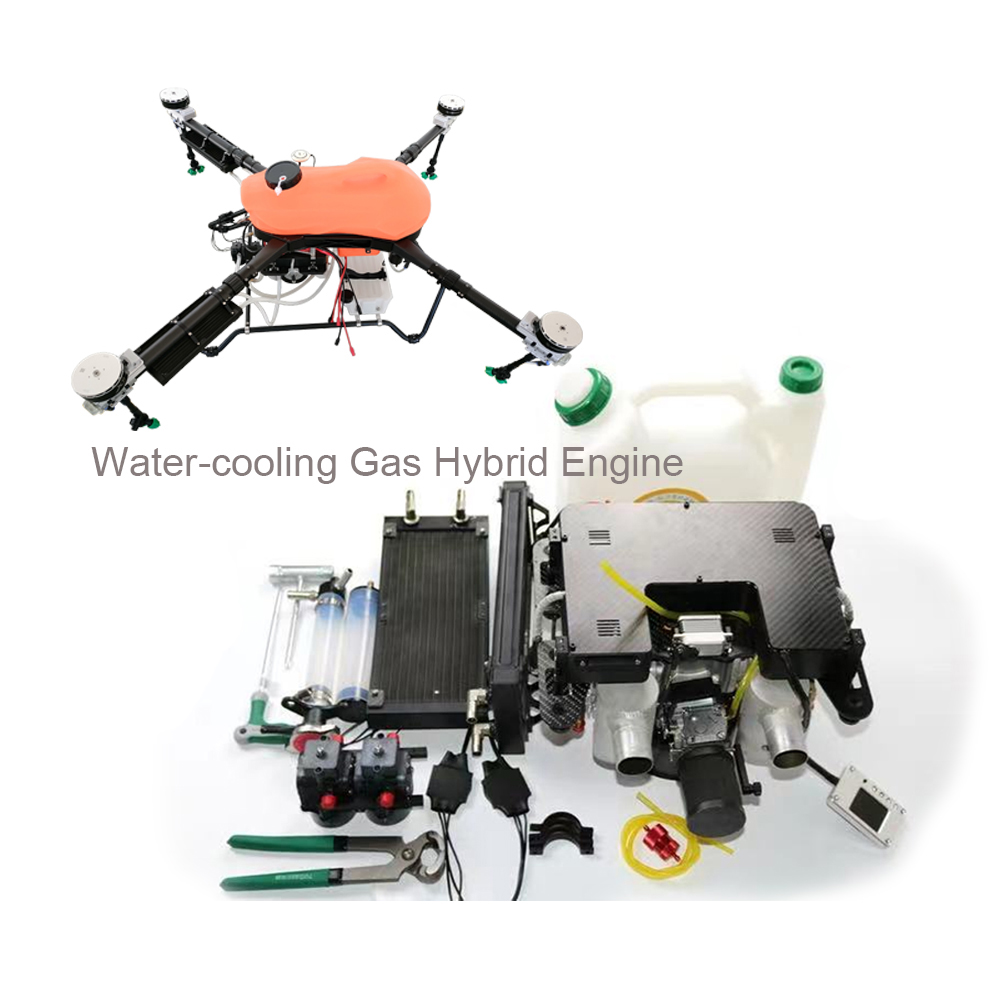

Water-cooling hybrid engine

The latest water cooling system can effectively control the temperature of high-power, high-speed engines.

When the temperature is too low, the cooling water system will automatically close the throttle valve to increase the oil temperature to achieve the best lubrication effect.

When the temperature is too high, the cooling water system will open the throttle valve to cool the engine to the best working temperature.

The latest water-cooling system keeps the engine always working in a suitable temperature range, enabling the UAV to reach higher power and effectively improve the UAV's performance.

Product Specification

Water Cooling Gas-electric hybrid power 16L agricultural UAV pesticide drone agriculture sprayer
Aircraft	Diagonal wheelbase	1500mm
	Dimensions(mm)	Propellers Folded Only: 11501150590(H) Arms and Propellers Folded: 750860590(H)
	Material	Carbon Fiber and Aluminum Alloy
Propulsion System	Power Supply	Gas-electric hybrid
	Motor	10015-100KV
	ESC	FOC 120A
	Max working voltage	50.4V
	Propeller size	36inch
Spraying System	Tank capacity	16L
	Number of nozzles	4
	Spraying shape	Full Cone
	Max spray rate	5L/min
	Theoretical operating efficiency (acres per hour)	18
FPV Camera	FOV	120°
	Resolution	720P
	FPV spotlight	900Im
Flight Parameters	Self weight (excluding battery)	25kg
	Standard take-off weight	44kg
	Max take-off weight	45kg
	Battery / Quantity needed	6S 10,000mAh*2
	Battery weight (each)	1kg
	Hovering duration	60mins (Takeoff weight of 25kg) 20mins (Takeoff weight of 45kg)
	Max tilt angle	15°
	Standard spraying speed (meters per second)	5m/s
	Max spraying speed (meters per second)	7m/s
	Max flying speed (meters per second)	10m/s
	Environment temperature	0-40℃ (32-104℉)
Remote Controller	Model	T12
	Voltage	4.2V
	Control Distance	2km
Charger	Model	PC1080
	Input voltage	AC100-240V
	Output power	1080W (540W*2)
