Shacman Delonghi X3000 460HP 8X4 8m Dump Truck (National
V)(SX3319XD426)
Shacman Truck, Tipper Truck, Dump Truck, 8*4 Truck
Model design highlights

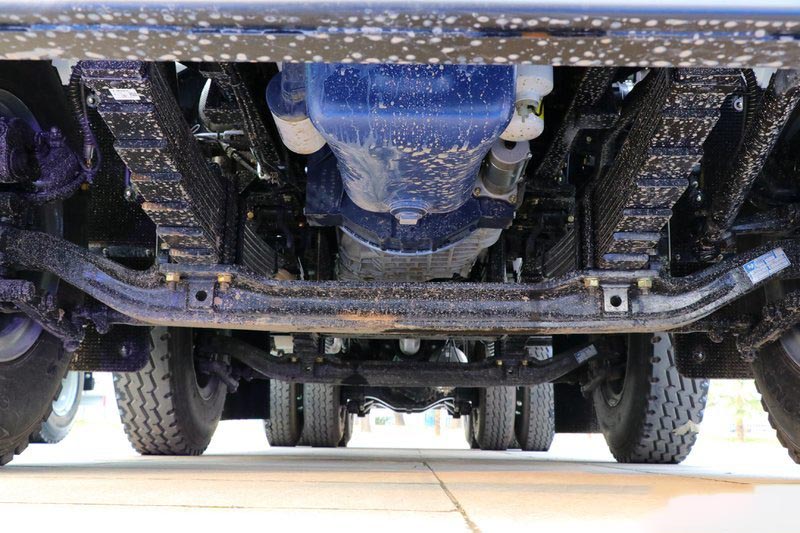

Chassis configuration:
The special chassis of Shaanxi Automobile Delong is adopted. The
chassis is solid and durable, with strong power, which can meet the
needs of different working conditions. The chassis not only
provides a good power foundation for the whole vehicle, but also
contributes to the national environmental protection.
Body configuration:
1. The upper loading box adopts the structure of high-strength
cold-rolled corrugated steel plate, which has large loading space,
high strength, strong lifting force, good rigidity and toughness,
strong bearing capacity, and no permanent deformation. The material
of the cargo box meets the requirements of rigidity and strength.
The floor of the carriage will be affected by gravity, and it must
also be subjected to inertial impact during loading and unloading,
so high-quality steel is selected as the raw material.
2. After the rear door of the dump truck is closed, it is reliably
locked to ensure the airtight requirements of the cargo in the
compartment. At the same time, it can effectively suppress the left
and right shaking of the rear door of the truck and improve its
anti-deformation ability. The rear door locking mechanism of the
truck, and then Avoid the loss of locking effect of the hook, which
will cause hidden dangers to the transportation safety of the dump
truck.
3. The hydraulic cylinder is one of the core working components of
the whole dump truck. The main function of the hydraulic cylinder
is to realize the unloading function by lifting the truck box.
During the unloading process of the dump truck, the hydraulic
lifting system plays a huge role.
Other highlights:
It can be seen in many engineering projects. Because of its stable
performance, good safety, affordable price, and good performance in
energy consumption, this is a dump truck with high cost
performance.
| Basic Information |
| Announcement model: | SX3319XD426 | Drive form: | 8X4 |
| Wheelbase: | 1800+4175+1400mm | engine: | Weichai WP12.460E62 |
| Gearbox: | Fast 12JSXD240T | Rear axle ratio: | 5.26 |
| Body length: | 10.95 meters | Body width: | 2.55 meters |
| Body height: | 3.5 meters | Front track: | 2036/2036mm |
| Rear Track: | 1860/1860mm | Vehicle weight: | 15.5 tons |
| Rated load: | 15.37 tons | Total mass: | 31 tons |
| Tonnage class: | Heavy Truck | Approach angle: | 17 degrees |
| Departure angle: | 18 degrees | Origin: | Shaanxi Xi'an |
| Market segments: | Urban construction waste | | |
| Engine parameters |
| engine model: | Weichai WP12.460E62 | Engine Brand: | Weichai |
| Number of cylinders: | 6 | Fuel type: | diesel fuel |
| Displacement: | 11.6L | Emission Standards: | country six |
| Maximum horsepower: | 460 hp | Maximum output power: | 338kW |
| Max torque: | 2200N m | Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm | Engine form: | CR+DOC+DPF+Hi_SCR |
| Cargo box parameters |
| Cargo Length: | 8 meters | Cargo width: | 2.35 meters |
| Cargo height: | 1.5 meters | Cargo box form: | self-unloading |

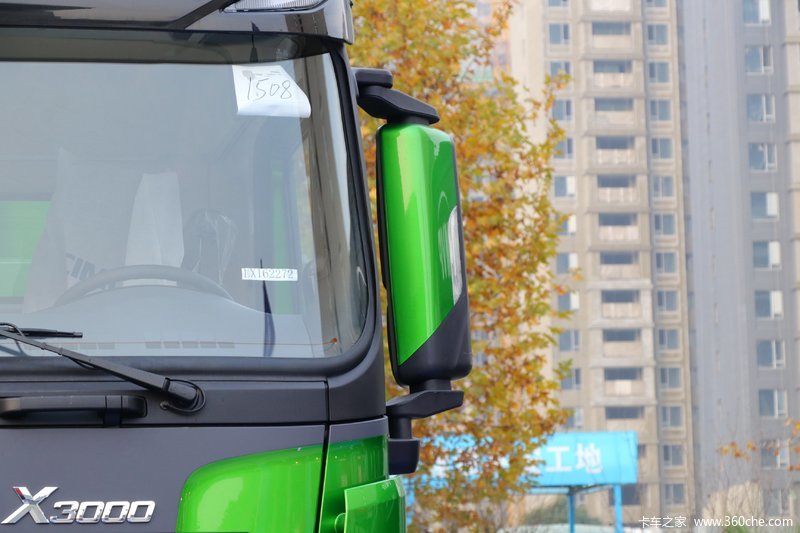

| Cab parameters |
| Cab: | Extended flat top | | |
| Transmission parameters |
| Gearbox Model: | Fast 12JSXD240T | Gearbox brand: | Fast |
| Forward gear: | 12 gears | Number of reverse gears: | 2 |
| tank |
| Fuel tank material: | Aluminum alloy | Fuel tank capacity: | 600L |
| Chassis parameters |
| Front axle allowable load: | 6500/6500kg | Description of rear axle: | 16T MAN |
| Rear axle allowable load: | 18000 (two-axis group) kg | Speed ratio: | 5.26 |
| Number of spring pieces: | 13/14/14 | | |
| tire |
| Tire specifications: | 12.00R20 18PR,11.00R20 18PR,12R22.5 18PR | Number of tires: | 12个 |
| control configuration |
| ABS Anti-lock Braking: | ● | |
|
