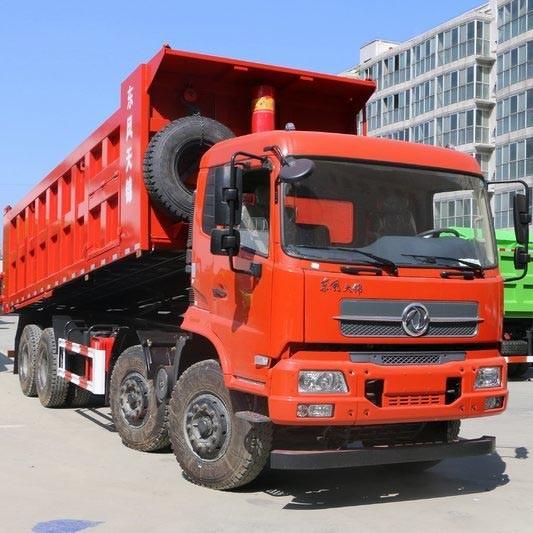

Dongfeng Commercial Vehicle Tianjin Heavy Truck 310HP 8X4 6.5m Dump
Truck (DFH3310BX2)
Dongfeng Truck, 8*4 Dump Truck, 8*4 Tipper, Dongfeng Dump Truck
The positioning of this model of Dongfeng Tianjin is an economical
and lightweight dump truck, and the application of the flat-top cab
conforms to its own positioning. The family-oriented front face
design is a bit outdated compared to the increasingly younger
design style, but it is still so classic.
The high-position three-section bumper can minimize the friction
between the body and complex roads and reduce maintenance costs.
The design of the headlights is mainly practical, there is no lens,
there is no LED daytime running lights, and there is no
eye-catching design sense. Nearly three years of use, the
headlights are still as bright as new, which is worthy of praise.
The high-quality workmanship is the main reason why Tianjin has
become a best-selling model.
Yuchai has a very large number of Yuchai engines in the southern
region. The Yuchai engine has the characteristics of high
temperature resistance, high torque and strong climbing ability,
which are very popular among customers. The maximum output is 310
horsepower and 1150N.m, which meets the National V emission
standard.
Matching with the engine is Fast's 10JSD120B model gearbox, which
has 10 forward gears, the highest gear is overdrive, and the speed
ratio is 0.73.
| Basic Information |
| Announcement model: | DFH3310BX2 | Drive form: | 8X4 |
| Wheelbase: | 1850+3100+1350mm | engine: | Yuchai YC6L310-50 |
| Gearbox: | Fast 10JSD120B | Rear axle ratio: | 5.143 |
| Body length: | 9.48 meters | Body width: | 2.55 meters |
| Body height: | 3.16 meters | Front track: | 1960/1960mm |
| Rear Track: | 1860/1860mm | Vehicle weight: | 13.405 tons |
| Rated load: | 18.6 tons | Total mass: | 31 tons |
| Tonnage class: | Heavy Truck | Approach angle: | 15 degrees |
| Departure angle: | 25 degree | Origin: | Shiyan, Hubei |
| Market segments: | Road transport | Remark: | Cargo height optional: 1.3 |
| Overall ratio: | 3.754 | | |
| Engine parameters |
| engine model: | Yuchai YC6L310-50 | Engine Brand: | Yuchai |
| Number of cylinders: | 6 | Fuel type: | diesel fuel |
| Displacement: | 8.424L | Emission Standards: | country five |
| Maximum horsepower: | 310 hp | Maximum output power: | 228kW |
| Max torque: | 1150N m | Maximum torque speed: | 1200-1700rpm |
| Rated speed: | 2200rpm | Engine form: | Vertical, water-cooled, four-stroke, in-line six-cylinder |
| Cargo box parameters |
| Cargo Length: | 6.5 meters | Cargo width: | 2.35 meters |
| Cargo height: | 1.5 meters | Cargo box form: | self-unloading |
| Transmission parameters |
| Gearbox Model: | Fast 10JSD120B | Gearbox brand: | Fast |
| Forward gear: | 10 gears | Number of reverse gears: | 2 |
| Chassis parameters |
| Front axle allowable load: | 6500/6500kg | Rear axle allowable load: | 18000 (two-axis group) kg |
| Speed ratio: | 5.143 | Number of spring pieces: | 2008/8/10 |
| tire |
| Tire specifications: | 11.00R20 18PR,12R22.5 18PR | Number of tires: | 12 |
| control configuration |
| ABS Anti-lock Braking: | ● | | |
