Sinotruk HOWO MAX 330hp 6X2 9.55m row semi-van truck (National
VI)(ZZ5257XXY
HOWO Truck, Cargo Truck, Cargo Box Truck, Sinotruk HOWO Cargo
Truck, Container Truck
In the 353rd batch of new car announcements, Sinotruk Howo declared

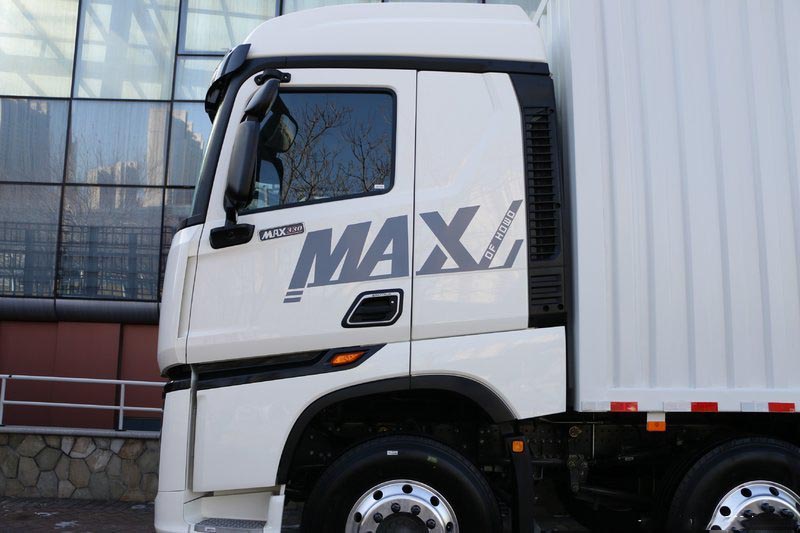

a 6x2 truck chassis. This model uses the cab of the Howo Max
tractor, and the third axle is a liftable axle. The overall
performance is quite good.
According to the declaration information inquired on the official
website, we learned that the wheelbase of this vehicle is
6225+1350mm, and the optional high-top two-bedroom cab is the same
as the Howo MAX tractor. The interior space performance and
interior comfort are believed to be different. will disappoint you.
In terms of power, users can choose from the 7.36-liter Sinotruk
MC07H.35-60 engine and the 7.8-liter Weichai WP8.350E62 engine
according to their own needs.
In terms of chassis, the front axle of this car is designed with a
steel plate suspension with few leaf springs, the rear two axles
are air suspension, and the third axle is a lifting axle. The tire
specification is 295/60R22.5 18PR, the chassis height is very low,
and the cargo height is only 2.9 meters, so the passability is
excellent.
| Basic Information |
| Announcement model: | ZZ5257XXYN54CKF1 | type: | van |
| Drive form: | 6X2 | Wheelbase: | 1950+5450mm |
| Box length level: | 9.6 meters | engine: | Sinotruk MC07H.33-60 |
| Gearbox: | Sinotruk HW10C-WY | Body length: | 12 meters |
| Body width: | 2.55 meters | Body height: | 3.98 meters |
| Front track: | 1930/1930mm | Rear Track: | 1830mm |
| Vehicle weight: | 10.18 tons | Rated load: | 14.69 tons |
| Total mass: | 25 tons | Maximum speed: | 89KM/h |
| Origin: | Shandong Jinan | Tonnage class: | heavy truck |
| Approach angle: | 19 degrees | Departure angle: | 14 degrees |
| Front Suspension / Rear Suspension: | 1.465/3.135m | | |
| Engine parameters |
| engine model: | Sinotruk MC07H.33-60 | Engine Brand: | Sinotruk |
| Engine common name: | Sinotruk MC07 | Number of cylinders: | 6 |
| Fuel type: | diesel fuel | Cylinder arrangement: | In-line |
| Displacement: | 7.36L | Emission Standards: | country six |
| Maximum output power: | 240kw | Maximum horsepower: | 330 hp |
| Engine form: | In-line six-cylinder, water-cooled, four-stroke, supercharged and
intercooled, high-pressure common rail | | |
| Cargo box parameters |
| Cargo box form: | van | Cargo Length: | 9.55 meters |
| Cargo width: | 2.45 meters | Cargo height: | 2.6 meters |
| Cab parameters |
| Number of passengers allowed: | 2 people | Seat row: | half row |
| Transmission parameters |
| Gearbox Model: | Sinotruk HW10C-WY | Gearbox brand: | Sinotruk |
| Shift method: | automatic | Forward gear: | 10 gears |
| Number of reverse gears: | 2 | | |
| tank |
| Fuel tank capacity: | 600L | | |
| Chassis parameters |
| Front axle allowable load: | 6750/6750KG | Frame size: | 双层车架(8+5/280)mm |
| Rear axle allowable load: | 11500KG | Number of spring pieces: | 3/3/9+6 |
| tire |
| Tire specifications: | 12R22.5 18PR | Tyre Type: | 纵向花纹 |
| Number of tires: | 8个 | | |
| control configuration |
| ABS Anti-lock Braking: | ● | | |
| Internal configuration |
| Multifunction steering wheel: | ● | | |
| Lighting configuration |
| LED taillights: | ● | | |
