Used 2017 Pure Electric Staff Inter City Bus 44 Seats Nearly New
Pure Electric Bus, Staff Bus, New and Used Bus
The LCK6108EV pure electric bus has a brand-new Shixuan new shape,
with a luxurious and modern appearance, a beautiful and elegant
interior, and a unilateral luggage rack configuration to meet the
needs of passengers. The front and rear roof trims are perfectly
connected to the luggage rack and air duct, and are integrated.
Equipped with a single passenger door and a left safety door, the
space between the seats is effectively increased while the luggage
compartment volume is increased, thereby improving the carrying
capacity and riding comfort of the product.
In terms of safety, safety failure mode and potential consequences
analysis and design methods are introduced. The high-voltage
battery box is equipped with safety structure design such as smoke
alarm, automatic fire extinguishing, collision inertial power
failure, etc., which improves the active safety design level.
In terms of energy saving, through the intelligent control of key
components such as battery, motor, electric assist, air
conditioner, etc., the energy distribution strategy of the vehicle
is optimized and the energy conversion efficiency of the vehicle is
improved. The vehicle's lightweight design, closed-loop skeleton
structure, and high-strength steel effectively reduce the vehicle's
own weight and comprehensively improve the vehicle's energy-saving
effect.
In terms of reliability, it adopts highly integrated low-voltage
and high-voltage power distribution control devices, redundant
insurance, active safety and passive safety integrated design;
adopts layered and modular control vehicle network system
architecture; adopts perfect charging software and hardware
measures; The intelligent remote monitoring system platform is
adopted to realize the reliability management of the whole vehicle
life cycle.
In terms of comfort, low noise, pollution-free, continuously
variable speed change reduces the intensity of driving work,
freeing up more energy for drivers to pay attention to road

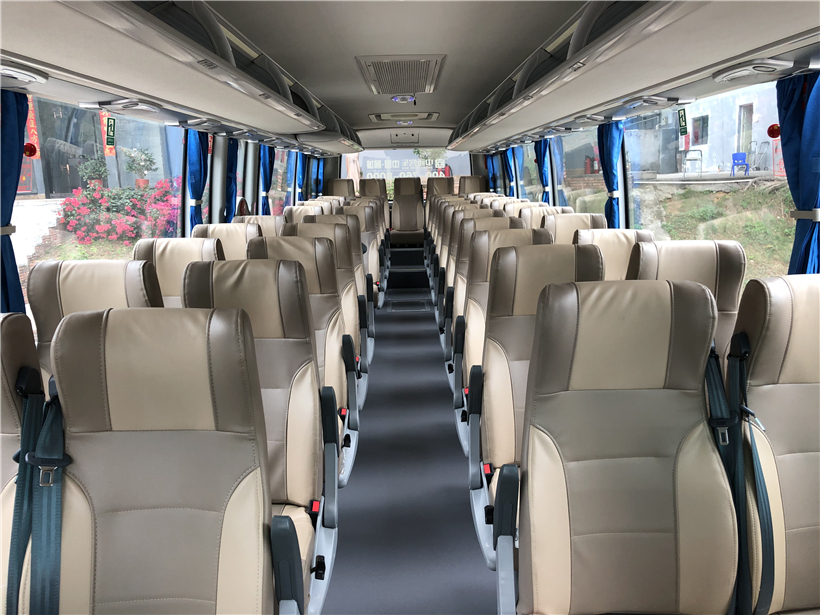

conditions and interior conditions; ergonomic seats are both
high-end fashion and comfortable to ride; wood grain Floor leather,
bringing a home-like experience.
| Vehicle parameters/information |
| Announcement model | LCK6108EV1 |
| use | Passenger coaches, tourist coaches, group coaches |
| body length | 10460mm |
| body width | 2500mm |
| body height | 3330,3450mm |
| Vehicle quality | 11050,11750kg |
| total mass | 16500kg |
| number of seats | 24-55 |
| seat form | Zhongtong ZTZY3072 (without armrests, backrest not adjustable),
Zhongtong 1050 driver's chair |
| top speed | 90km/h |
| Air Conditioning System | Cooling and heating integrated air conditioner |
| Auxiliary configuration | Driver front - left sunshade, 2 4kg fire extinguishers, 2 sunroofs
(with ventilation fan), warning triangle, water tank, 75KW charger |
| Engine/Motor Parameters |
| motor | TZ460XSZT1 |
| Motor Power | 120kW |
| Motor brand | Zhongtong Bus Holding Co., Ltd. |
| Chassis parameters/configuration | |
| Chassis model | load-bearing body |
| front suspension rear suspension | 2220/2840mm |
| Suspension System | Front 2 rear 4 air suspension, imported shock absorber, height
valve |
| Number of spring pieces | 4/5,8/11,-/- |
| axle | Front axle: Dongfeng front axle 5.5T disc type, rear axle: Dongfeng
rear axle 11T drum type, finely ground teeth |
| number of axes | 2 |
| wheelbase | 5400mm |
| Axle load | 5500/11000kg |
| Front track | 2040mm |
| rear track | 1860,1900mm |
| approaching the departure angle | 9/9° |

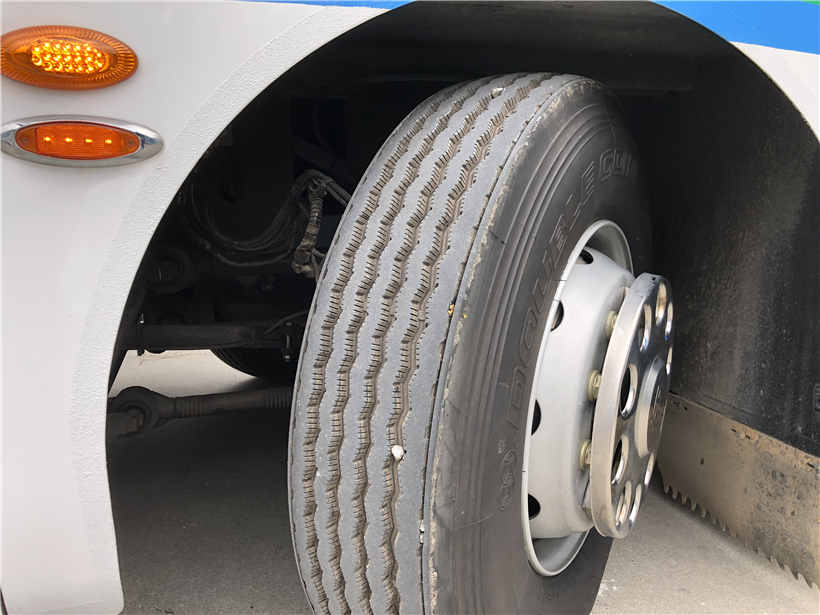

| tire |
| Number of tires | 6 |
| Specification | 11R22.5 |
