Used 2021 Dongfeng Duolika Fuel Tank Truck D6 140HP Euro 5 with 4.47CM3
Used Fuel Tank Truck, Fuel Tank, Tank Truck, Dongfeng Truck
Dongfeng Duolika oil tanker, also known as Dongfeng mobile
refueling truck, computer tax-controlled refueling truck, oil lead
tank truck, Dongfeng oil filling truck, Dongfeng oil truck, oil
truck, oil transporter, edible oil transporter, mainly used for
Transportation and storage of petroleum derivatives (gasoline,
diesel, crude oil, lubricating oil, coal tar and other oil
products). According to different uses and use environments, it has
a variety of refueling or oil transportation functions, including
oil absorption, pumping oil, and various oil packaging and
distribution functions. The special part of the oil truck is
composed of the tank body, the power take-off, the transmission
shaft, the gear oil pump, the pipe network system and other
components.
Dongfeng Duolika oil tanker, the pipe network system consists of
oil pump, three-way four-position ball valve, two-way ball valve,
filter screen and pipeline.
Introduction to the oil tank section
▲Function: It can be independently divided into warehouses, and
different oil products and chemicals can be divided into the
southwest and north. The design can realize the pump in and out of
the table.
▲The tank body is made of carbon steel, stainless steel, lined with
rotomolding, and glass fiber reinforced plastic.
▲The tank types are square, oval, and round.
▲The oil pump adopts self-priming pump and gear pump.

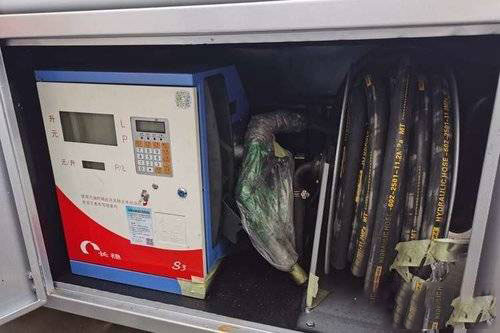

▲The oil meter adopts single count, double count and tax-controlled
fuel dispenser.
▲The effective volume of the tank is 4.4 cubic meters and 4.71
cubic meters.
▲The external dimensions of the tank (length × long axis × short
axis) are:
4280×1490×860(mm)
4300×1500×920(mm)
| Basic Information |
| Drive form: | 4X2 | Wheelbase: | 3800mm |
| Body size: | 6.9×2.32×2.48m | Front Suspension / Rear Suspension: | 1.18/1.92m |
| Rated load: | 2.98 tons | Vehicle weight: | 4.315 tons |
| Maximum speed: | 95km/h | Front track: | 1835mm |
| Rear Track: | 1640mm | | |
| Engine parameters |
| engine model: | ISDe14030 | Number of cylinders: | 6 |
| Maximum output power: | 103kW | Maximum horsepower: | 140 hp |
| Displacement: | 4.5L | Emission Standards: | country three |
| Engine form: | In-line six-cylinder Electronic control system Enhanced high
pressure common rail Particulate filter | | |
| Bodywork parameters | |
| Vehicle announcement: | EQ5070GJYG | Vehicle type: | refueling truck |
| Top brand: | Dongfeng shares | Vehicle Origin: | Wuhan, Hebei |
| Tank size: | 4.7×1.6×1.08 meters | Tank volume: | 4.47m3 |
| Shipping medium: | gasoline | Media Density: | 0.7 tons/cubic meter |
| Chassis parameters |
| Chassis brand: | Dongfeng Dolica | Chassis series: | Dolica D6 |
| Chassis model: | EQ1070TJ9AD3 | Number of spring pieces: | 11/9+7,8/10+7 |
| Number of tires: | 6 | Tire specifications: | 8.25-16, 7.50-16, 8.25R16, 7.50R16 |
